Public Bathroom Accessories (Imperial)

This free collection of manufacturer-specific Revit content offers a range of hand dryers and manual and automatic dispensers for public bathroom facilities.

When designing public bathroom facilities, enabling good hygiene should be a top priority. Choosing the right equipment is a key factor and will make a big impact on how people use and maintain the facilities.

Focusing on imperial bathroom accessories, this free collection of Revit content offers a range of hand dryers and manual and automatic dispensers.

Soap dispensers

There are three wall-mounted soap dispensers from manufacturers Bradley and Bobrick. Each has one built-in type featuring a brushed stainless steel material. Both Bradley models are manual and the Bobrick dispenser is automatic.

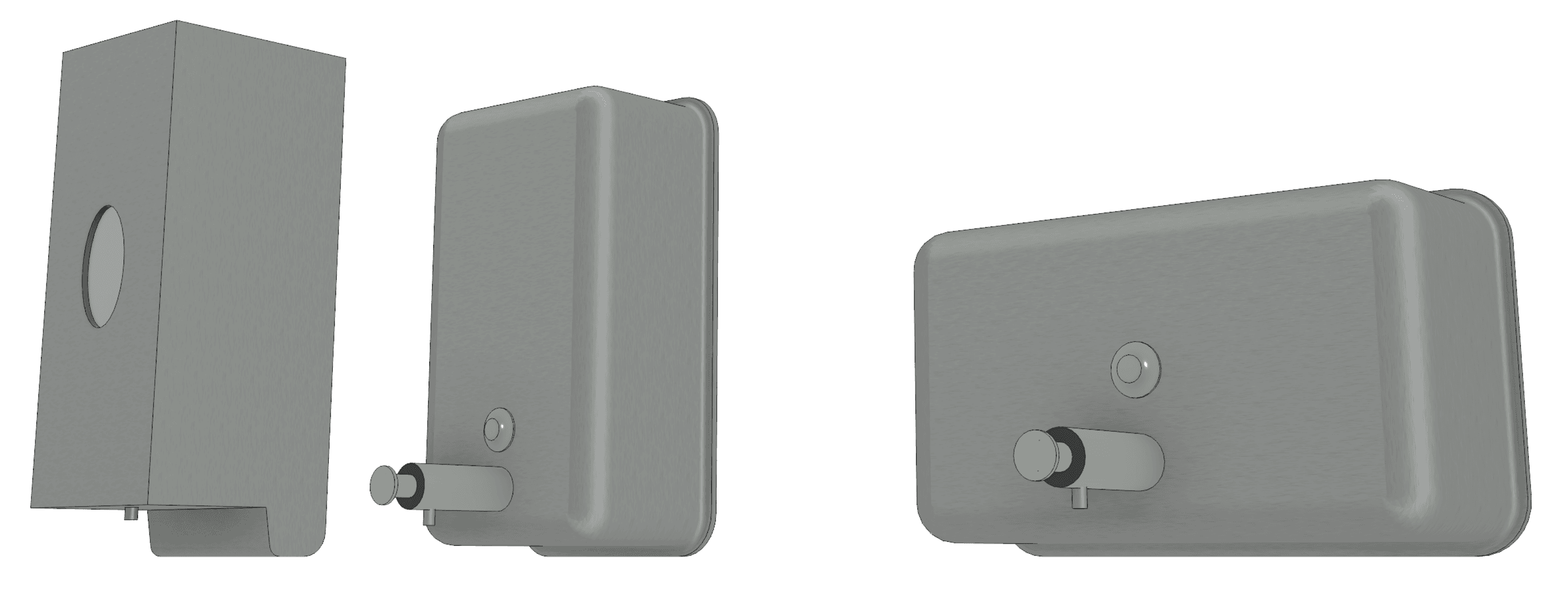

Revit 3D fine view of wall-mounted soap dispensers from Bradley and Bobrick.
Wall-mounted soap dispensers from Bradley and Bobrick.

Foam and lotion dispensers

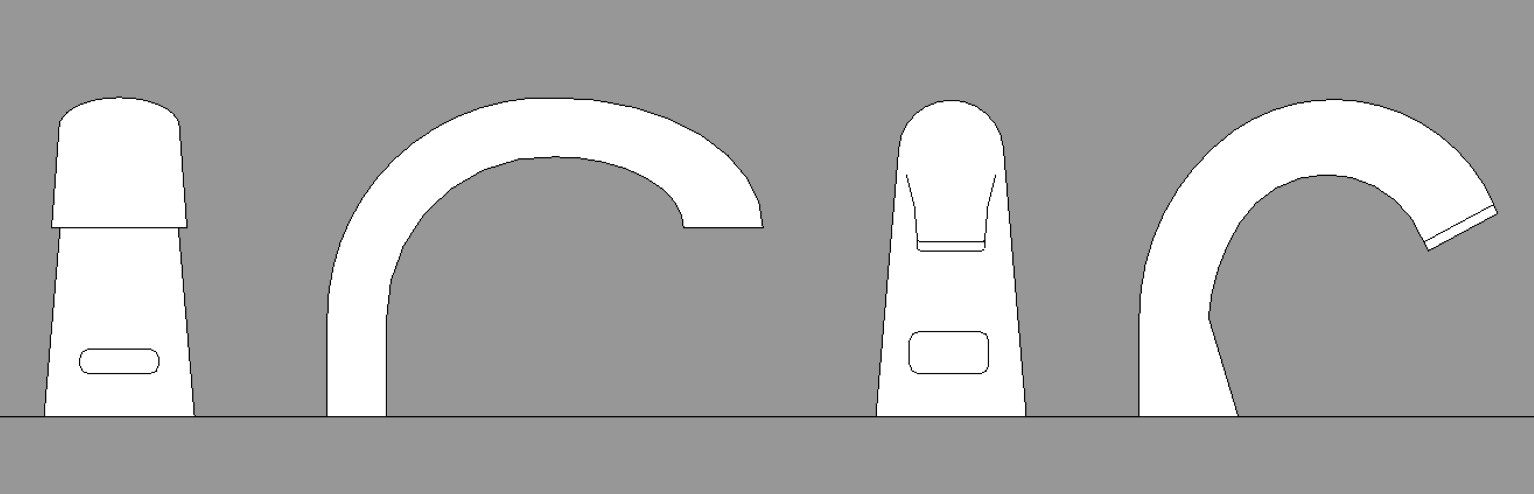

The collection also includes two surface-mounted lotion and foam dispensers from Rubbermaid. They both feature touchless motion sensors and come in chrome and plastic finishes.

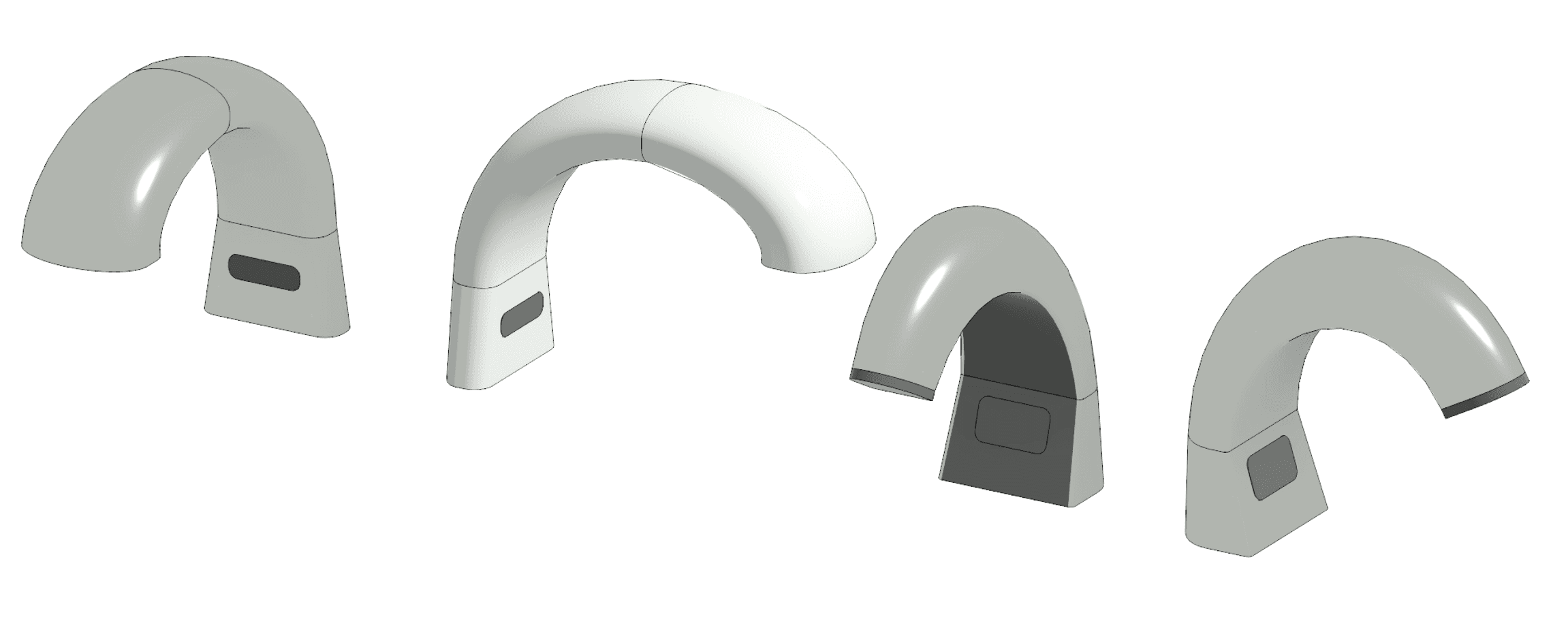

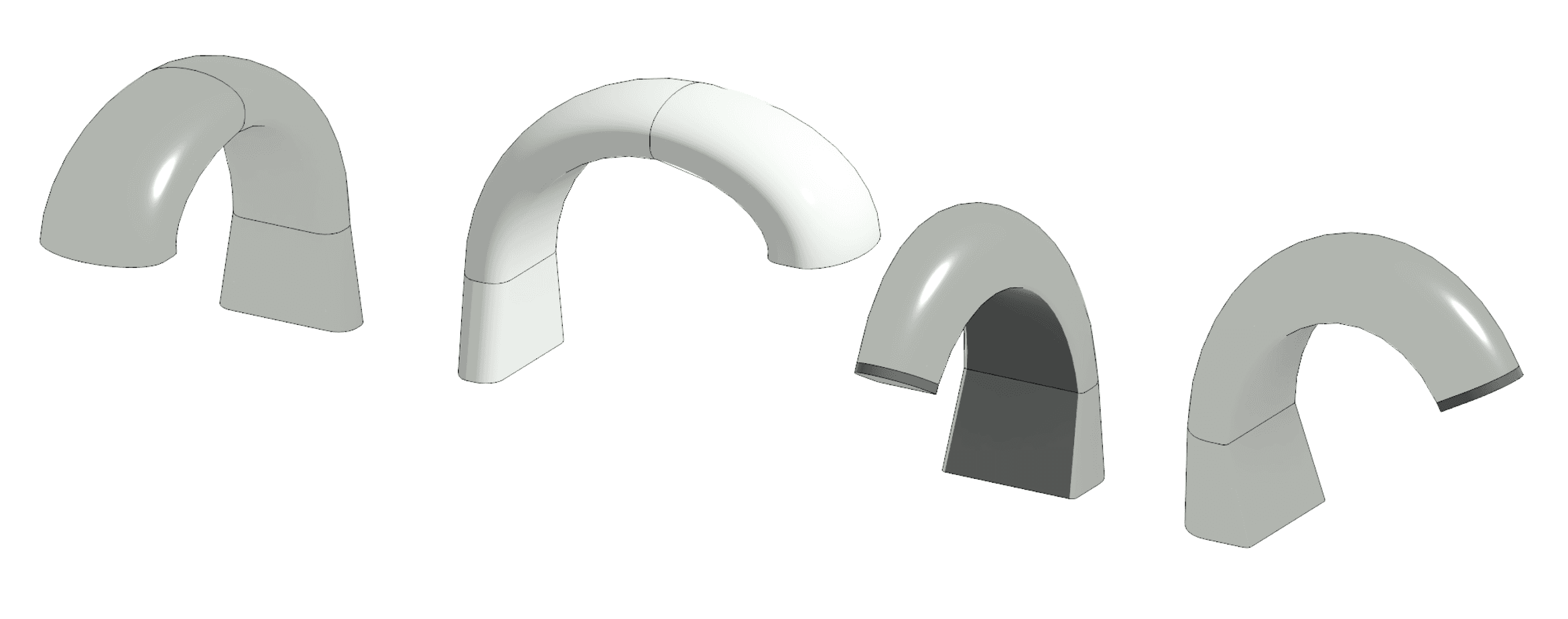

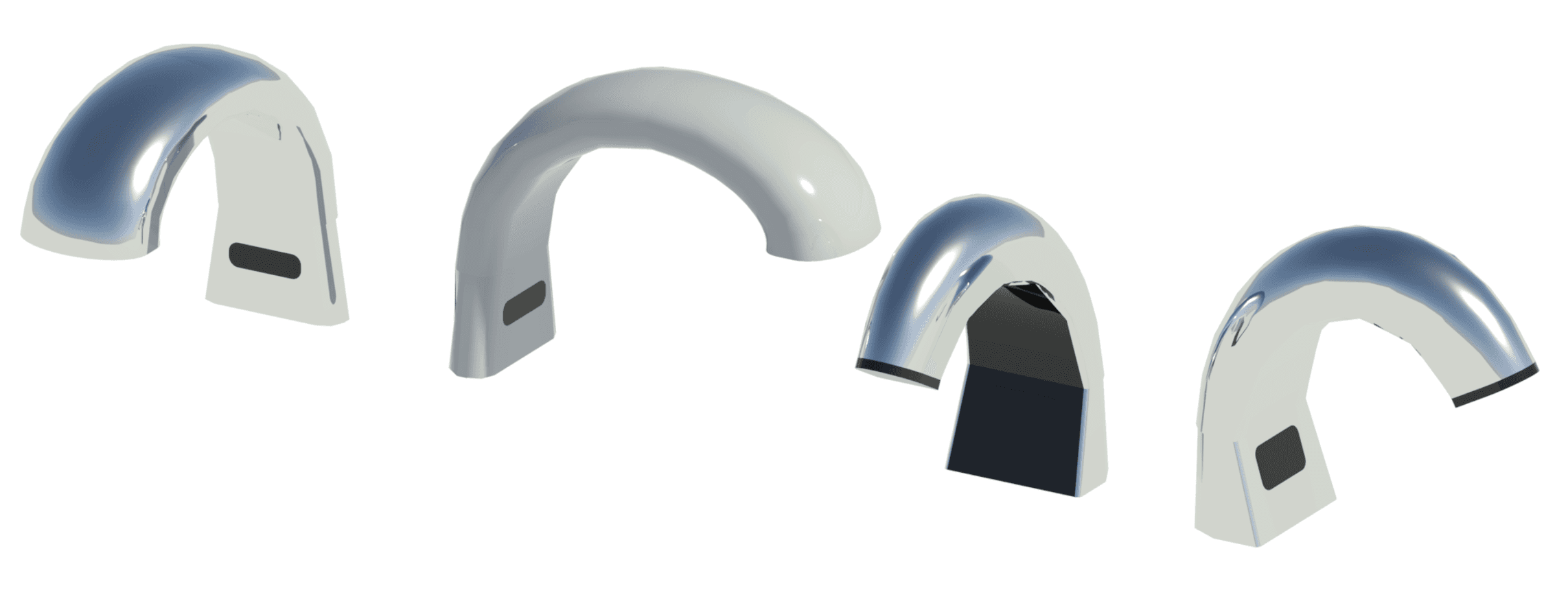

Revit ray trace showing deck-mounted lotion and foam dispensers.
Revit ray trace showing deck-mounted lotion and foam dispensers.

Toilet paper dispensers

Also included are two wall-mounted toilet paper dispensers from Palmer Fixture. There is a two-roll vertical model with a stainless steel type, as well as a mini twin model featuring two built-in types for black or white materials.

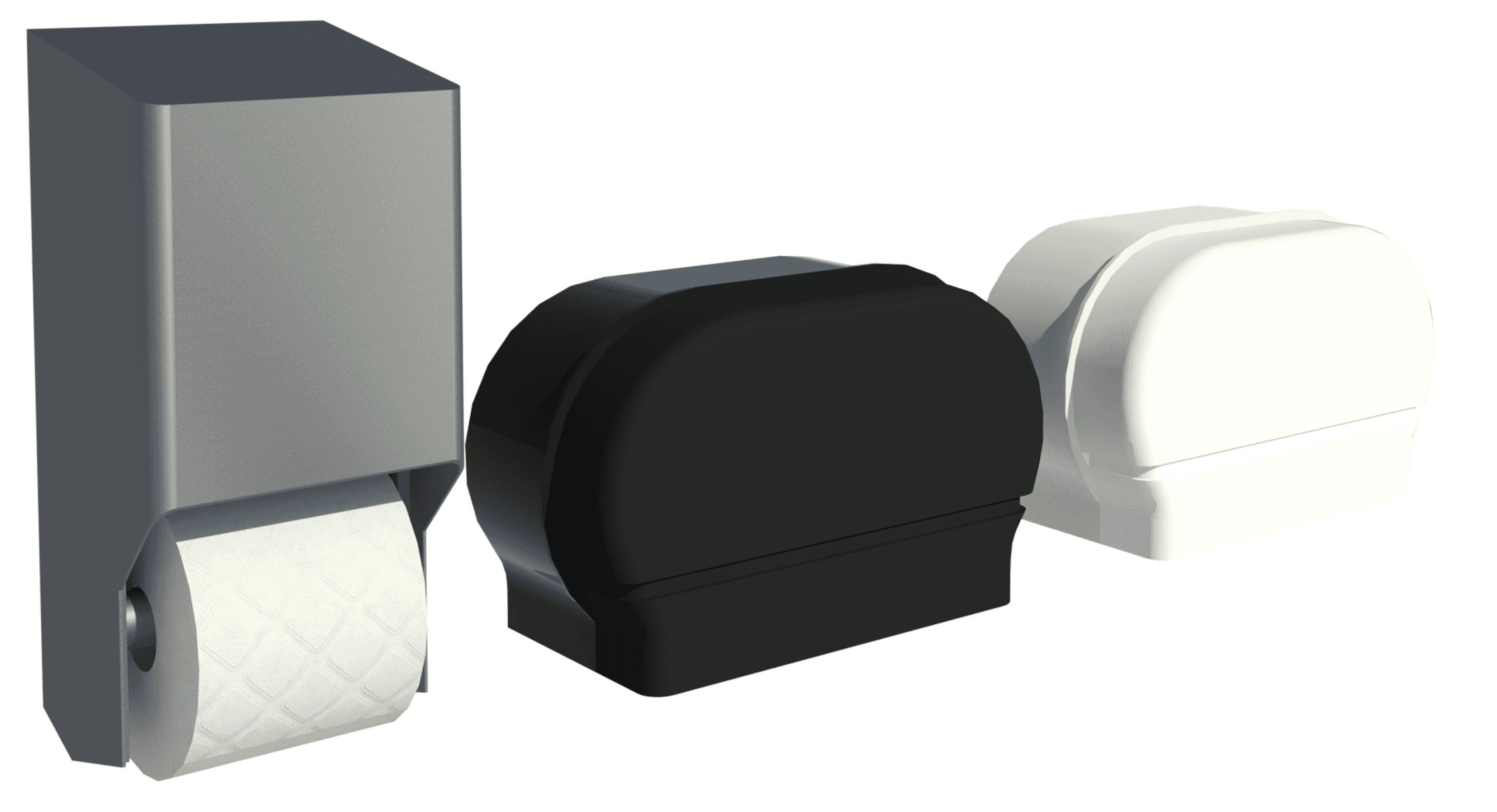

Revit ray trace showing wall-mounted toilet paper dispensers.
Revit ray trace showing wall-mounted toilet paper dispensers.

Paper towel dispensers

Also from Palmer Fixture is an automatic paper towel dispenser that comes complete with three built-in types for different finishes. The collection also includes a manual version from Alpine Industries.

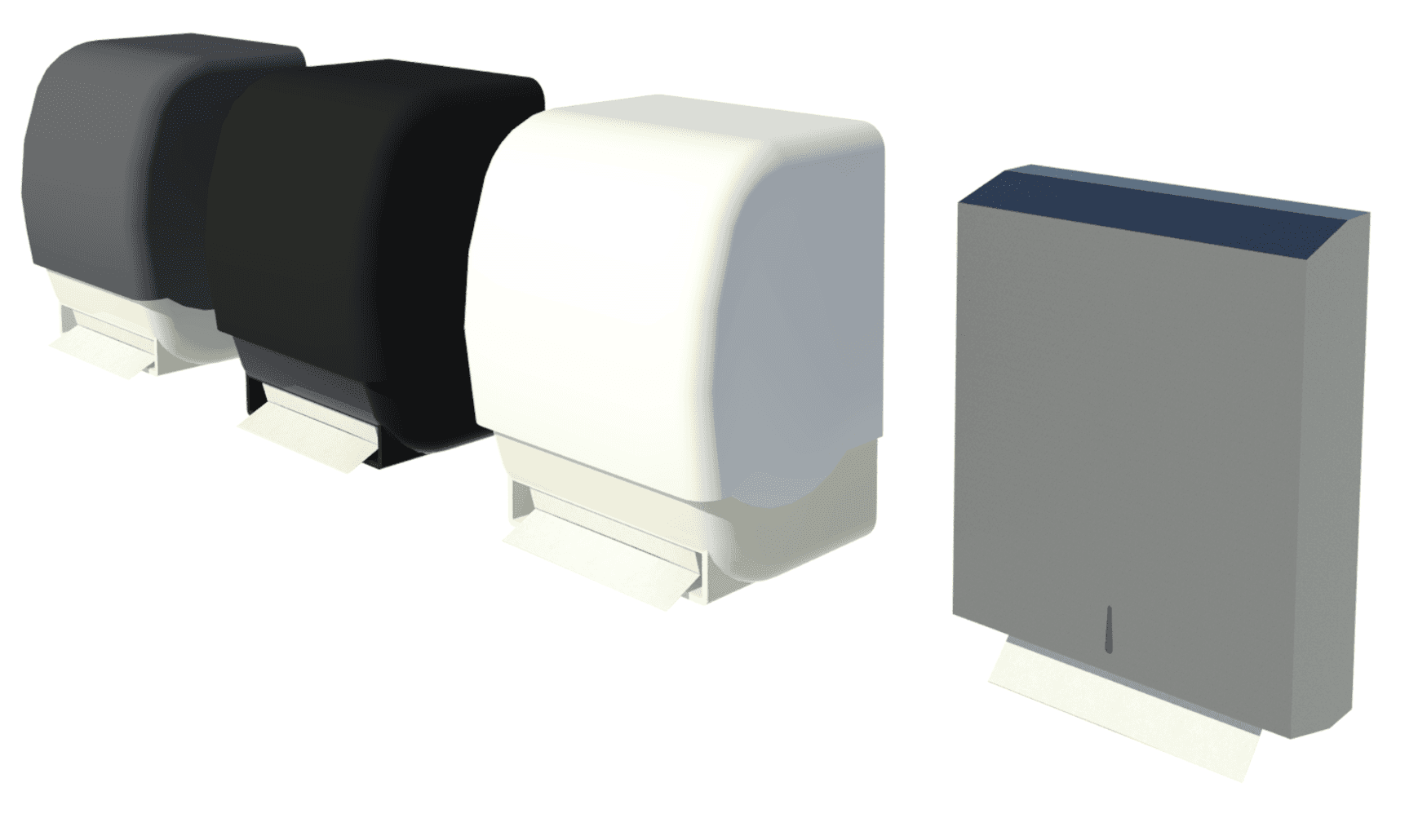

Revit ray trace showing wall-mounted paper towel dispensers.
Revit ray trace showing wall-mounted paper towel dispensers.

Hand dryers

Last but not least, the collection also includes hand dryers from Dyson and Excel.

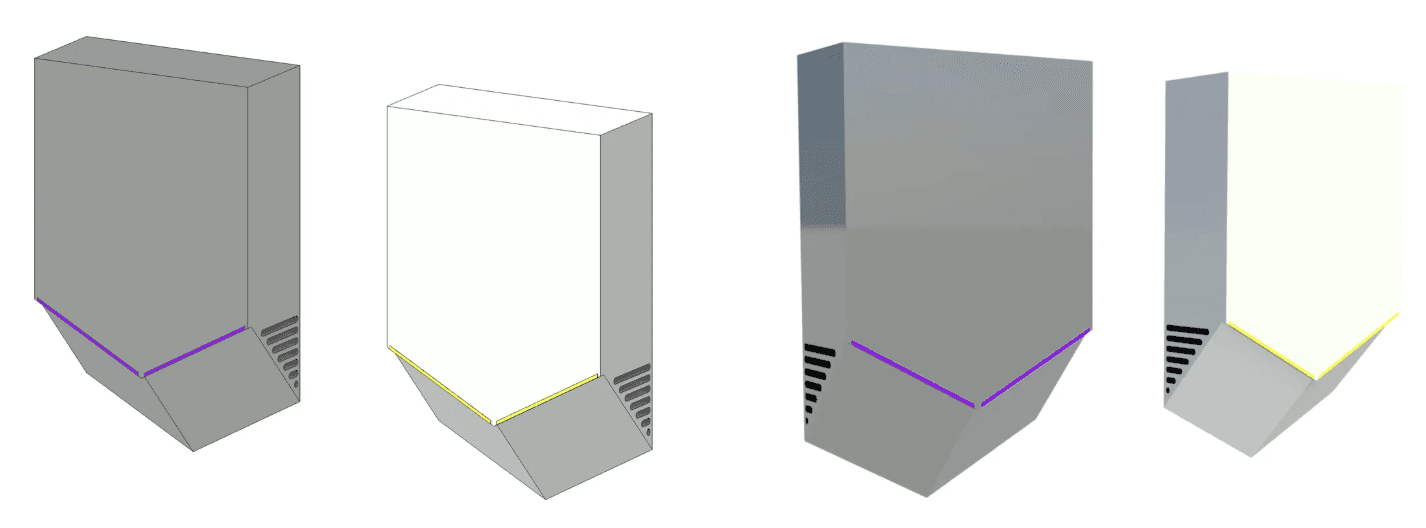

The Dyson Airblade V comes with eight types driven by a type catalog, defined by four voltages and two different materials.

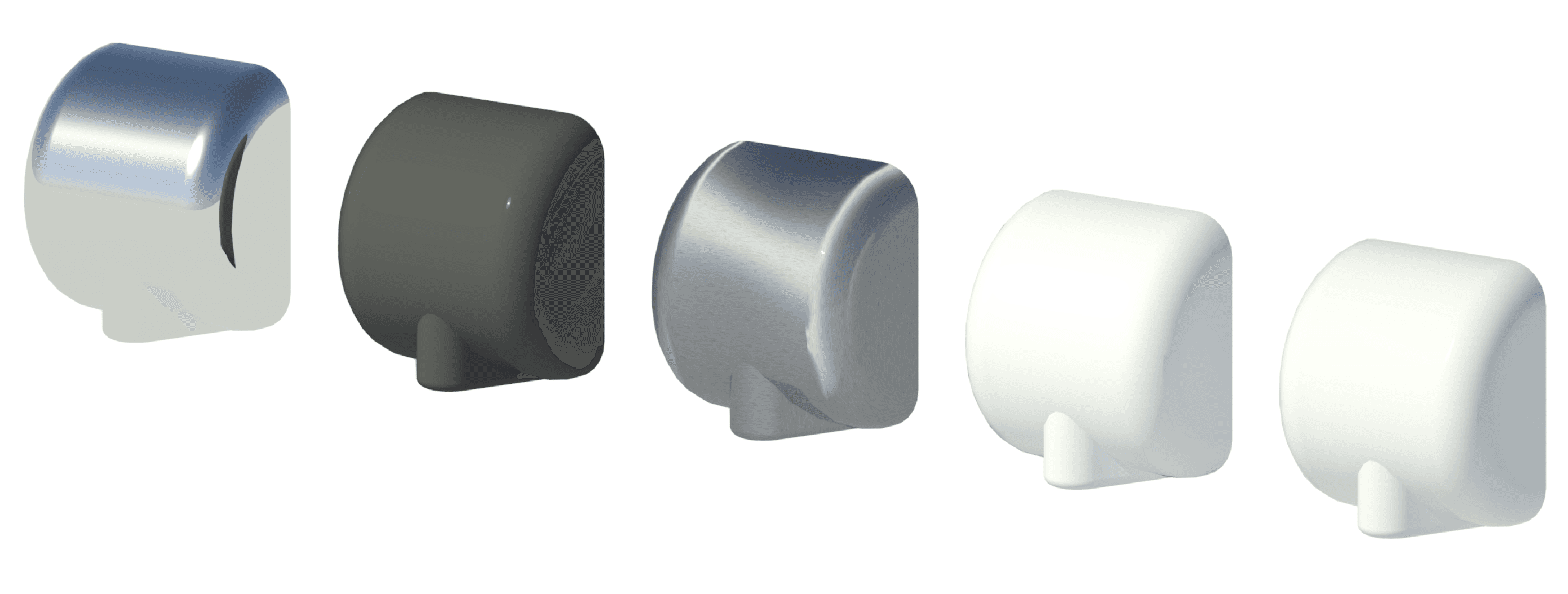

Revit ray trace showing different materials for the Xlerator hand dryer.
Revit ray trace showing different materials for the Xlerator hand dryer.

Excel’s Xlerator model has 15 types, also driven by a type catalog, allowing for three different voltages and five material variations.

Specifications

All of the models have three levels of detail and 2D geometry for plans and elevations. Where relevant, they also include system connectors.

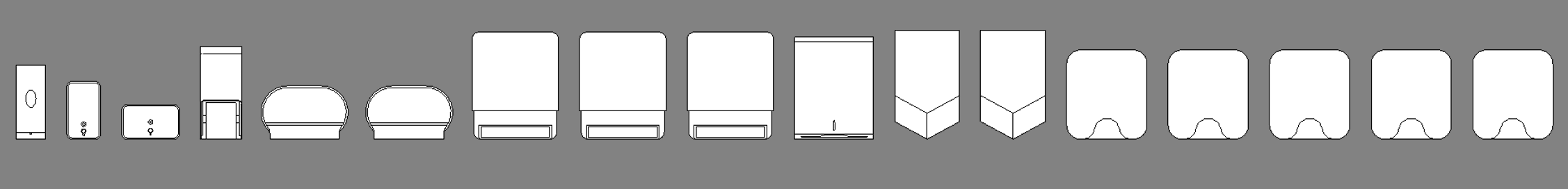

Front elevation view showing all wall-mounted bathroom accessories.
Front elevation view showing all wall-mounted bathroom accessories.

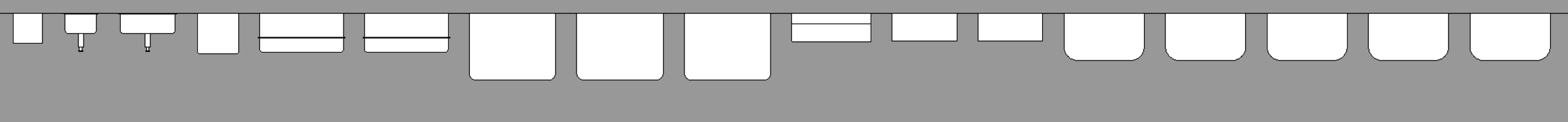

Plan view showing all wall-mounted bathroom accessories.
Plan view showing all wall-mounted bathroom accessories.

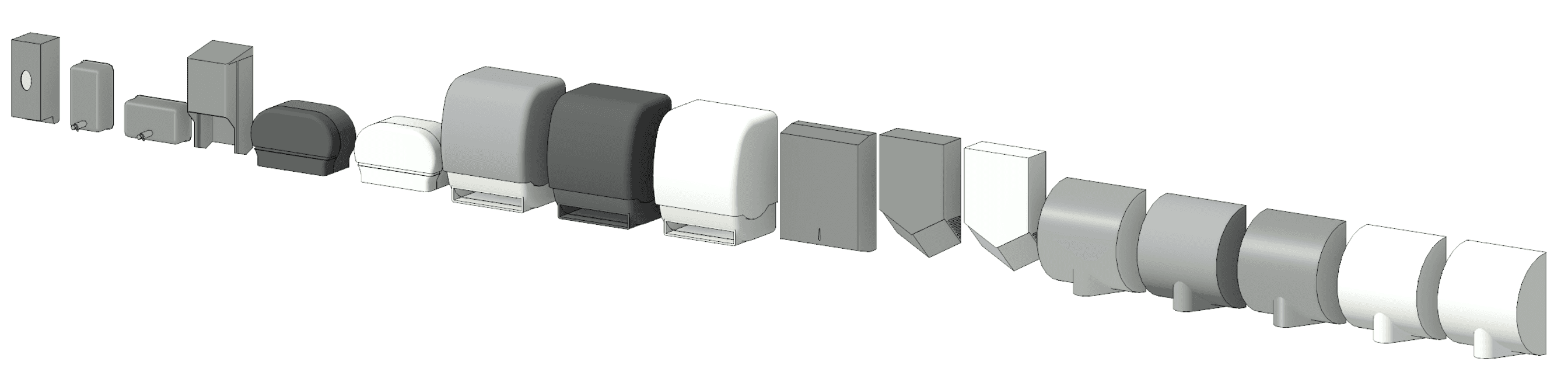

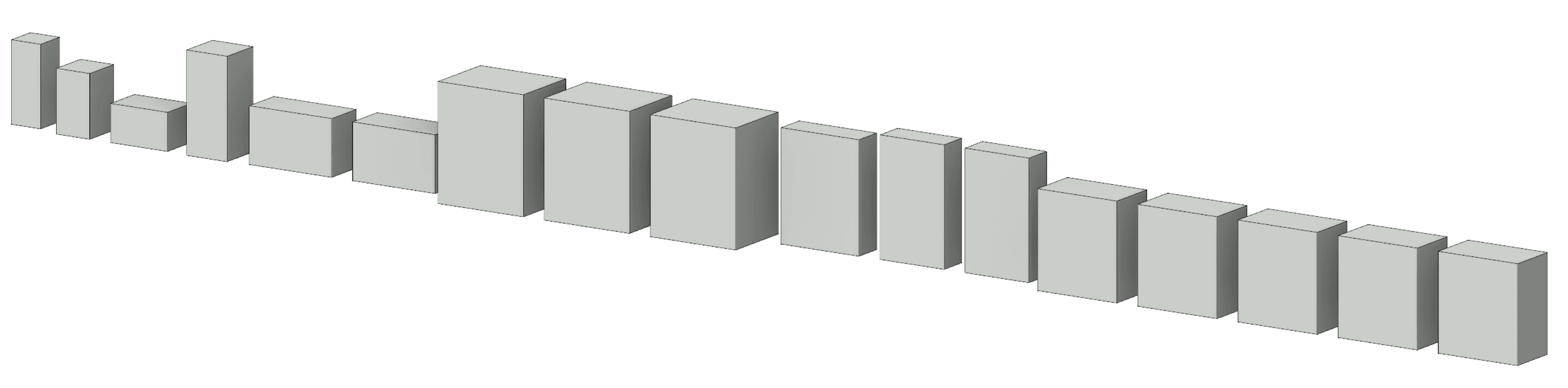

Revit 3D view of all accessories in Coarse level of detail.
Revit 3D view of all accessories in Coarse level of detail.
Revit 3D view of all accessories in Medium level of detail.
Revit 3D view of all accessories in Medium level of detail.

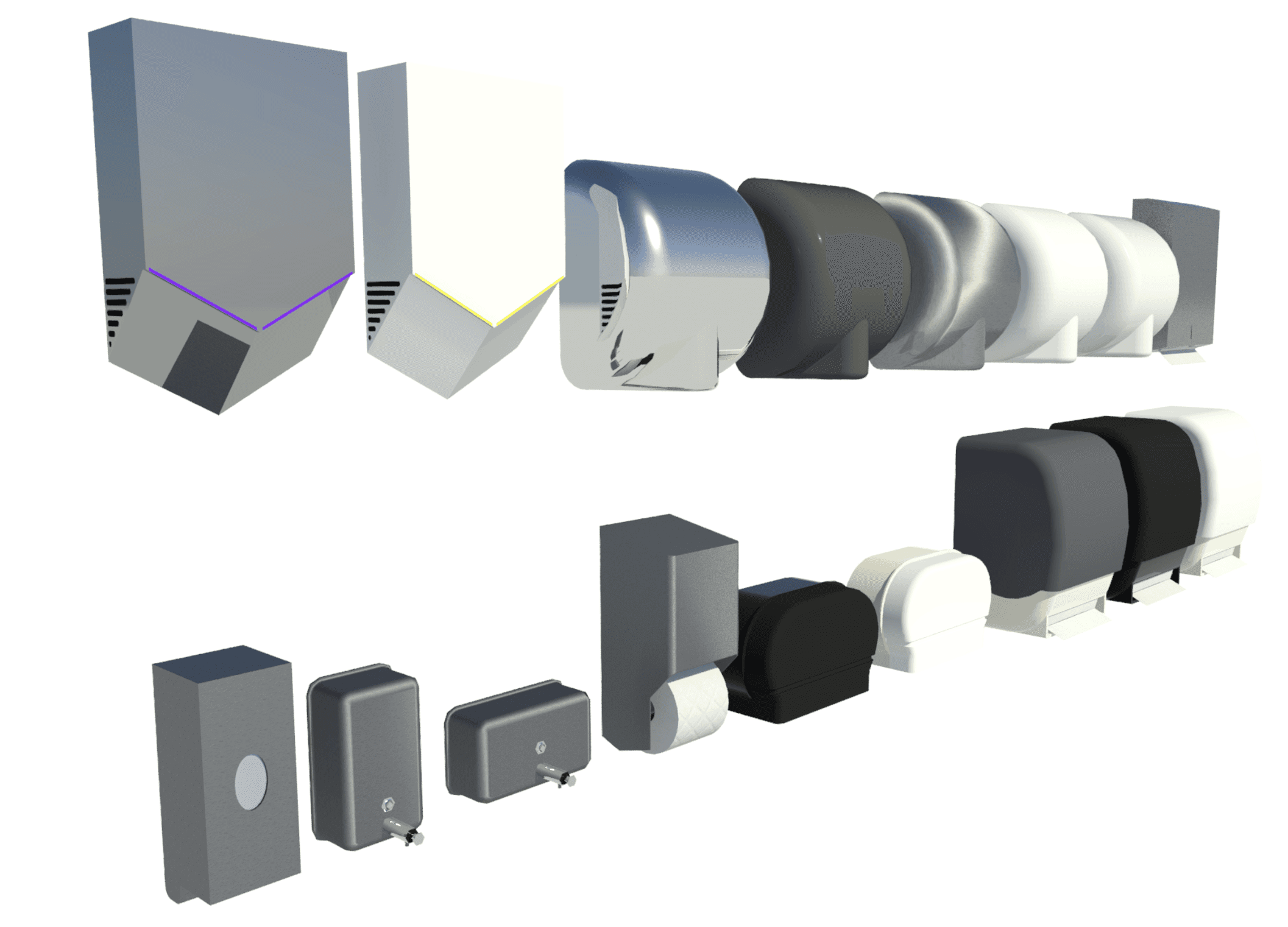

Revit 3D view of all accessories in Fine level of detail.
Revit 3D view of all accessories in Fine level of detail.

Get the collection

Click here to view and download the full collection.

Collection content list

  1. Automatic foam dispenser from Rubbermaid.
  2. Automatic lotion dispenser from Rubbermaid.
  3. Hand dryer from Dyson.
  4. Hand dryer from Excel.
  5. Automatic paper towel dispenser from Palmer Fixture.
  6. Manual paper towel dispenser from Alpine Industries.
  7. Soap dispenser from Bobrick.
  8. Two soap dispensers from Bradley.
  9. Two toilet paper dispensers from Palmer Fixture.
